HSD P5i
HSD P5i
Couldn't load pickup availability
About
About
What sets it apart as a P5i?
Features a Class 1 Bosch Performance Line motor with Bosch Smart System, delivering up to 75 Nm of torque and enhancing pedaling power by up to 340%.
Equipped with a detachable and user-friendly Intuvia 100 display for convenient operation.
Utilizes the Gates CDX Belt Drive for a quiet, smooth, and virtually maintenance-free ride.
Includes the Shimano Nexus INTER-5E internally geared hub for seamless gear shifting.
HSD Highlights:

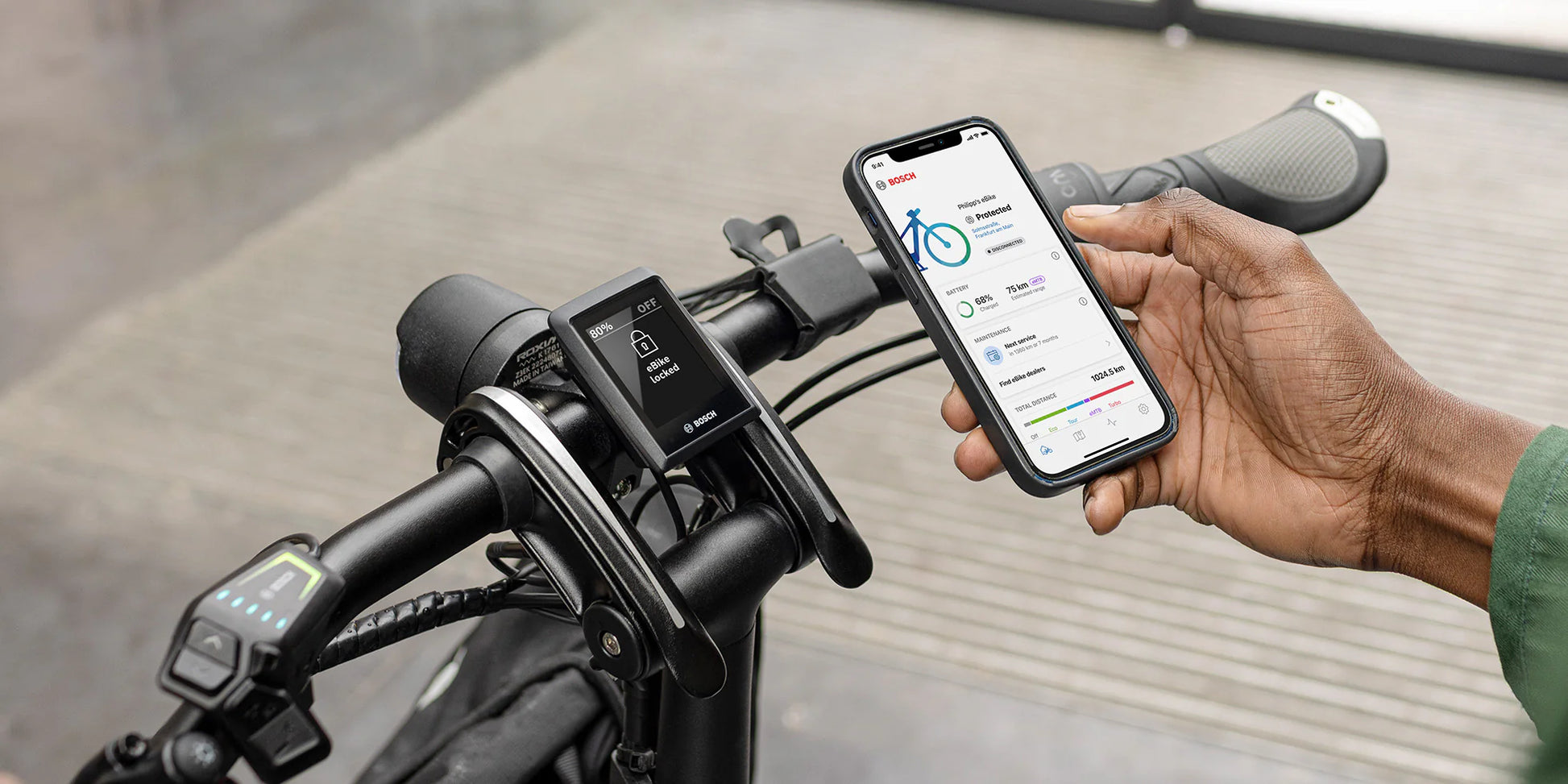

Seamlessly control all Smart System functions via the Bosch eBike Flow App, facilitating system updates, eBike Lock activation, riding mode customization, bike information viewing, dealer connectivity, and more.
Powered by the Bosch PowerPack 545 battery, providing an extensive range of up to 121 km (76 mi).
Designed for cargo and passenger transport, boasting a large rear rack capacity of 80 kg (176 lb), capable of accommodating either an infant to a medium-sized adult passenger or ample cargo.
Offers a versatile fit for riders ranging from 150 - 195 cm (4’11” - 6’5”), thanks to the easily-adjustable cockpit.
Ensures safety and reliability, with the frame and fork undergoing rigorous EFBE testing for a Maximum Gross Vehicle Weight of up to 180 kg (397 lb).
Shipping
Shipping
In Store Pick Up, Local Delivery, & Shipping Available
ADDITIONAL INFORMATION
FEATURES
SPEEDS:1 x 5
WEIGHT: 27.9 kg (61.5 lb)
GEAR INCHES: 38" - 99" (2.99 - 7.88 m)
FOLDING SIZE:165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
FOLDING TIME:5 seconds
FRAME SIZES: One size
DISTANCE: SEATPOST TO HANDLEBAR:54.5 - 62.5 cm (21.5 - 24.6 in)
DISTANCE: SADDLE TO PEDAL:70 - 102.5 cm (27.6 - 40.4 in)
SUGGESTED RIDER HEIGHT:150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:180 kg (396.8 lb)
MAX RIDER WEIGHT:120 kg (264.6 lb)
WHEELS
FRONT WHEEL:Tern Atlas H, cargo wheel
REAR WHEEL:Tern Atlas H, cargo wheel
FRONT HUB: Novatec, Thru-axle, sealed bearings
REAR HUB: Shimano Nexus INTER-5E
SPOKES & NIPPLES:Stainless steel
RIMS:Tern Atlas H, wide 35 mm
TIRES:Schwalbe Big Apple, 55-406, puncture protection, Reflex
FRAME SPECS
FRAME: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
FORK: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
TRANSMISSION/E-SYSTEM
TRANSMISSION SHIFTER(S): Shimano Nexus INTER-5E
CRANKSET: Tern HSD custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL: Gates CDX, precision CNC machined cog
BOTTOM BRACKET:Motor integrated
CHAIN:Gates Carbon Drive CDX belt
PEDALS:Urban with non-slip surface
SHIFTER CABLE & HOUSING: Shimano
E-SYSTEM MOTOR:Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph (US)
BATTERY: Bosch PowerPack 545
DISPLAY:Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
LOCK & ALARM: Optional
RANGE:545 Wh: 51-121 km (32-76 mi)
CHARGER:220V, 4A (EU); 100-240V, 4A (US)
COCKPIT/BRAKES
COCKPIT
HANDLEPOST:Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM:Tern Andros, adjustable, forged construction, patented technology
HEADSET:Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
HANDLEBAR:Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:Ergon
SADDLE: Tern Upright by Velo
SEATPOST:Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP:Tern Collar
BRAKES
FRONT BRAKE:Shimano, hydraulic disc, 180 mm rotor
REAR BRAKE:Shimano, hydraulic disc, 160 mm rotor
BRAKE LEVERS:Shimano, hydraulic disc
BRAKE CABLE & HOUSING:Shimano, hydraulic disc
BELLS & WHISTLES
BELL: Pitch Plus, brass
CHAINGUARD:Tern Custom, full chain cover
KICKSTAND:Ursus, rear mount
LUGGAGE SOCKET:Combo Mount
FRONT LIGHT:Tern Valo Direct, 190 lumens
REAR LIGHT:Herrmans H-Trace, for eBike
FENDERS:SKS, stainless hardware
RACK(S):Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
FRAME LOCK:ABUS, keyed-alike with Bosch battery
