Orox R14 (27.5")

Orox R14 (27.5")

Regular price $8,999.00 USD
Regular price Sale price $8,999.00 USD
Sale Sold out
Shipping calculated at checkout.

About

What makes it an R14?

  • Highly-durable and virtually maintenance-free Rohloff Speedhub
  • Silent, smooth, and rust & grease-free Gates Belt Drive
  • Custom 27.5" Schwalbe Johnny Watts all-terrain tires with optimized tread take on even the toughest conditions

Orox highlights

  • Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
  • Dual-battery system draws from up to two batteries for ultra-long range

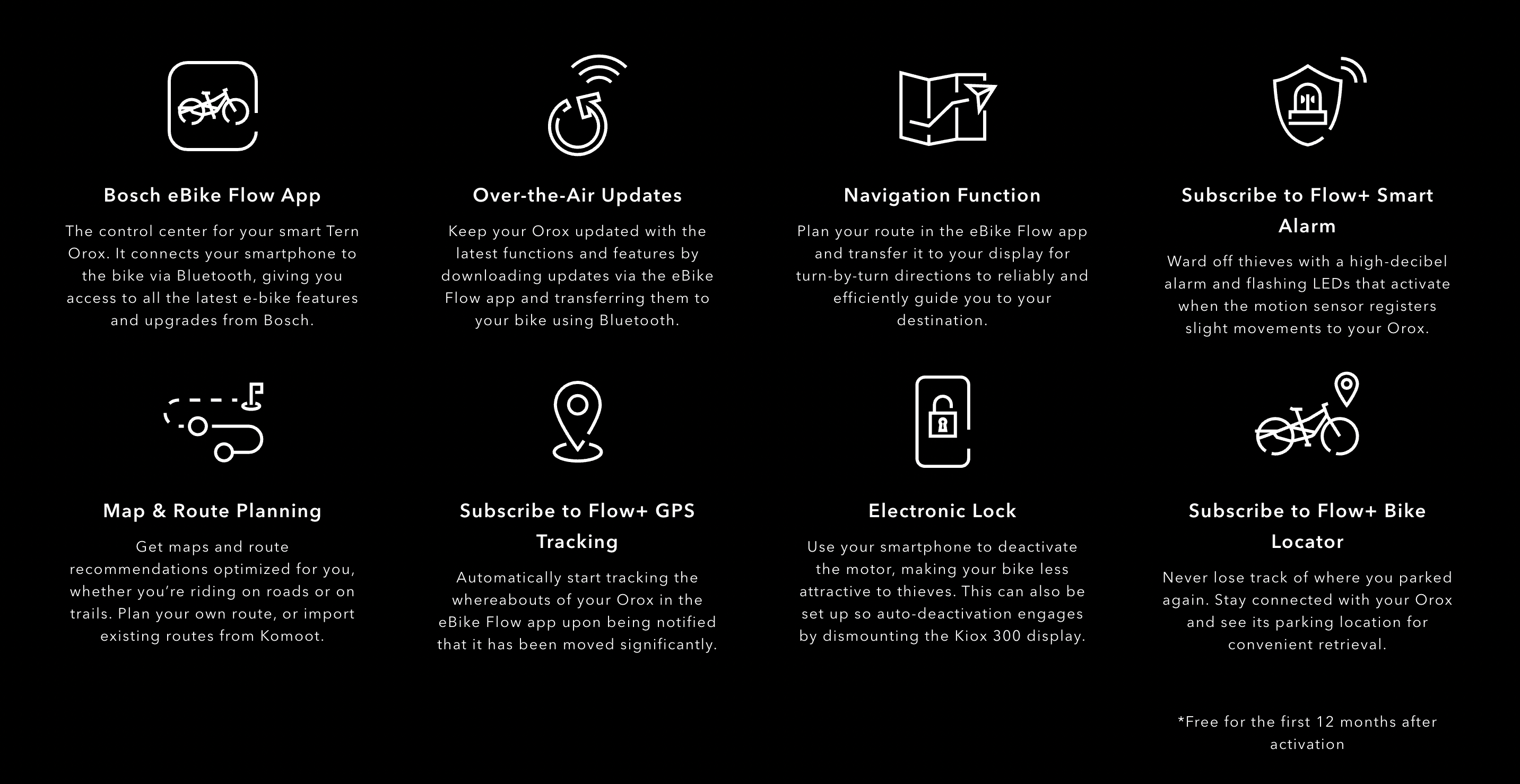

  • Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
  • Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
  • Powerful and responsive Magura 4-piston hydraulic brakes
  • EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
  • Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

Shipping

In Store Pick Up, Local Delivery, & Shipping Available.

View full details

ADDITIONAL INFORMATION

FEATURES

GENERAL INFO

SPEEDS:1 x 14

WEIGHT:M: 33.8 kg (74.5 lb)

GEAR INCHES:18" - 96" (1.45 - 7.64 m)

FRAME SIZES:M, L

DISTANCE: SEATPOST TO HANDLEBAR:M: 61 - 66 cm (24 - 26 in) ;L: 67 - 73 cm (26.4 - 28.7 in)

DISTANCE: SADDLE TO PEDAL:M: 71 - 99 cm (28 - 39 in) ;L: 76.5 - 104.5 cm (30.1 - 41.1 in)

SUGGESTED RIDER HEIGHT: M: 155 - 185 cm (61 - 72.8 in) ;L: 165 - 195 cm (65 - 76.8 in)

MAX GROSS VEHICLE WEIGHT: On-road: 210 kg (463 lb) ;Off-road: 180 kg (396.8 lb)

MAX RIDER WEIGHT:130 kg (286.6 lb)

WHEELS

WHEELS:

FRONT WHEEL: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"

REAR WHEEL: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"

FRONT HUB: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx

REAR HUB: Rohloff, 526% range, Boost

SPOKES & NIPPLES: Stainless steel

RIMS: Tern Atlas X, custom doublewall construction

TIRES:Schwalbe Johnny Watts 27.5" x 4"

FRAME SPECS

FRAME:Tern Orox, 6061-AL, patented design, EFBE tested and approved

FORK:Atlas X, butted chromoly steel, EFBE tested and approved

TRANSMISSION/E-SYSTEM

TRANSMISSION

SHIFTER(S):Rohloff, Twist

CRANKSET:Tern Orox custom, Gates CDX CNC machined beltring

CASSETTE/FREEWHEEL:Gates CDX, precision CNC machined cog

BOTTOM BRACKET:Motor integrated

CHAIN:Gates Carbon Drive CDX belt

PEDALS:MTB, non-slip

SHIFTER CABLE & HOUSING: Rohloff

E-SYSTEM

MOTOR:Bosch Performance CX, max speed 20 mph (US)

BATTERY:800 Wh, Bosch Dual Battery pack ready

DISPLAY:Bosch Kiox 300 w/ LED remote, electronic bike lock

RANGE:800 Wh: 93 - 161 km (58 -100 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)

CHARGER:100-240V, 4A (US)

CONNECT MODULE:Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

COCKPIT/BRAKES

COCKPIT

STEM:Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified

HEADSET:FSA, 1.5", angular contact bearings

HANDLEBAR:Level Nine, AL-7050, 800 mm, riser, eMTB approved

GRIPS/BAR TAPE: ErgonSADDLE:Ergon SM, E-Mountain Sport, CrMo Rail

SEATPOST:Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved

SEATPOST CLAMP:Tern Collar

BRAKES

FRONT BRAKE: Magura MT5, 4-piston hydraulic disc, 203 mm rotor

REAR BRAKE: Magura MT5, 4-piston hydraulic disc, 203 mm rotor

BRAKE LEVERS:Magura MT5, hydraulic

BRAKE CABLE & HOUSING:Magura, hydraulic

BELLS & WHISTLES

BELL: Pitch Plus, brassTOOL:Thru-axle lever, 4/5 mm, Torx 2.5 mm

CHAINGUARD:Custom Bash Guard

PAINT PROTECTION:ToughShield film on top and downtube, self-healing

KICKSTAND:Atlas Kickstand XL Cargo ready

FRONT LIGHT:Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

REAR LIGHT:LED w/ G-Sensed Brake Light

FENDERS:Aluminum, heavy duty construction, oversize stays, 27.5"

RACK(S):Atlas X, 100 kg (220 lb) capacity
